Product Details:
|
| Input Voltage(v): | AC85-300V | Wattage: | 11W |
|---|---|---|---|
| Base Type: | G24D/G24Q/GX23-2/G23-2/E27/E26/B22 | Lamp Luminous Flux(lm): | 1000-1200LM |
| Switch Mode:: | Button Switch | Material:: | Pc+ Aluminum |
| Size:: | 172*28mm | Application:: | House, Hotel, Supermarket, Restaurant |
| High Light: | GX24 G24 Led Bulb 2 Pin,G23 G24 Led Bulb 2 Pin,11W LED Corn Cob Light |
||

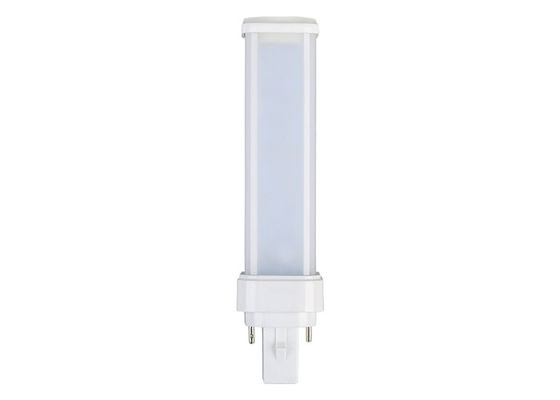

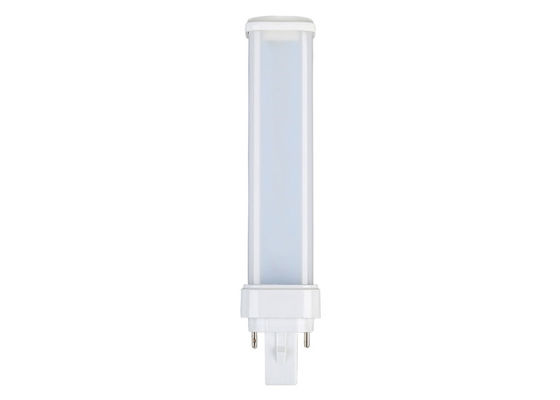

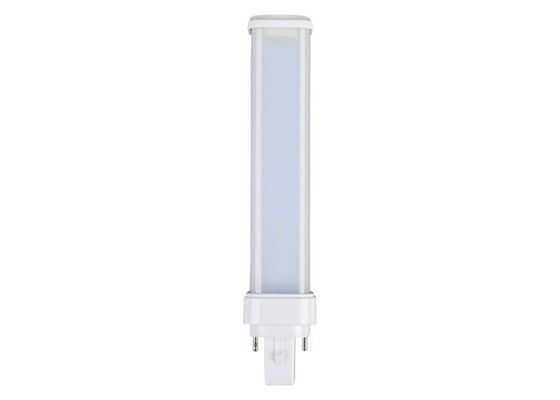

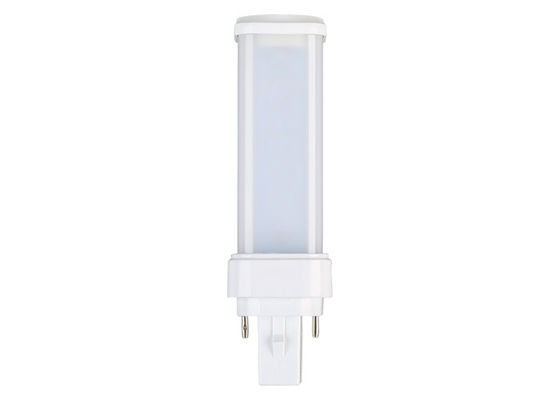

Advance Lighting 85-300V 1000-1200 lm 11W G24 G23 GX24 180 degree 2pin led outdoor commercial signs wall light pl lamp
Product Description
------------------------------------------------------------------------
Note for product:
1. The number of chips is subject to the actual process.

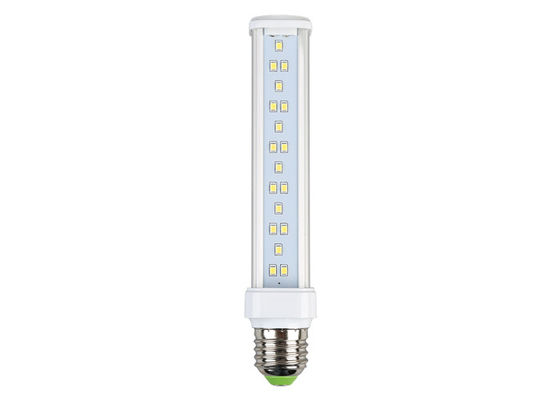

2. White deepen light diffusion cover can be customized. But you're going to lose some lumens.
3. Our light diffusion cover is designed after accurate calculation and experiment, which not only has excellent optical diffusion effect, but also ensures an efficient lumen value.
4. There are many chips in our lights, so the light distribution is very uniform. And we don't need to use completely opaque cover to evenly distribute the light as some lights do.
5. The only difference between linear drive and isolated drive is that the process and voltage range are different. There is no difference in appearance, quality or effect.
Specification
|
Power /MODEL
|
5W
|
7W
|
9W
|
11W
|
|
ALL-S05A
|
ALL-S07A
|
ALL-S09A
|
ALL-S11A
|
|
|
Luminous Flux
|
400-600
|
600-800
|
800-1000
|
1000-1200
|
|
Size
|
120*28mm
|
144*28mm
|
158*28mm
|
172*28mm
|
|
Replace
|
PLC-10W
|
PLC-13W
|
PLC-18W
|
PLC-26W
|
|
|
Accurate voltage:85-300V
|
|||
|
Isolated driver
|
||||
|
Lamp Holder
|
G24/G23/GX24
|
|||
|
Body Material
|
PC + Aluminum
|
|||
|
Cover
|
Clear / Diffusion / Whitening( Customized)
|
|||
|
Radiator
|
Aluminum alloy
|
|||
|
Color TEMP
|
1.3000K (Warm white), 2.4000K (Nature white), 3. 6000K (Cool white), 4. Other
|
|||
|
CRI
|
Ra≥82
|
|||
|
Power Factor
|
PF≥0.5 / PF≥0.9[10% Price of wide voltage increased by 10%]
|
|||
|
LED Chips
|
SMD2835；0.5W/PCS
|
|||
|
Working TEMP
|
-45℃ - +55℃
|
|||
|
IP Grade
|
IP50
|
|||
|
Lifespan
|
30000H - 40000H
|
|||
Lighting your industrial building is a large expense and many times, costs can be cut down just by replacing your older Metal Halide, High Pressure Sodium, and fluorescent lamps with new industrial LED retrofit solutions. These lights are installed in your existing fixtures, making installation a breeze. We offer direct wire or LED bulb retrofit solutions that are designed to replace any commercial light fixture while offering bright illumination and reduced energy costs.
Our Services
(1). OEM&ODM for you.
(2). Your inquiry will be replied within 30 minutes!!
(3). 3 years warranty with well-built complaint system.
(4). 8 years experience only for LED corn lamp.
(5). The biggest family of Corn lamp: 5W/7W/9W/12W/15W/20W/25W/30W/40W/60W/80W/100W/120W/150W/200W.
(6). Our products have been approved with CE/ROHS certifications.
(7). Our top sales Countries: Japan, Germany, North America, Canada, and Australia etc.
