Product Details:
|
| Output Power: | 180W | Input Voltage: | 110V/220V |
|---|---|---|---|
| Output Current: | 15A/7.5A | Output Type: | Single |
| Output Voltage: | DC12V/DC24V | Frequency:: | 50/60Hz |
| Cooling Method:: | Air Cooling | Size:: | 200x100x50 Mm |
| High Light: | 180W Constant Voltage LED Power Supply,15A 7.5A cctv power supply box,180W cctv power supply box |
||

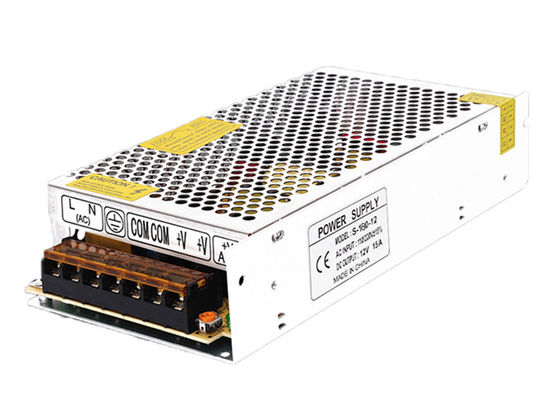

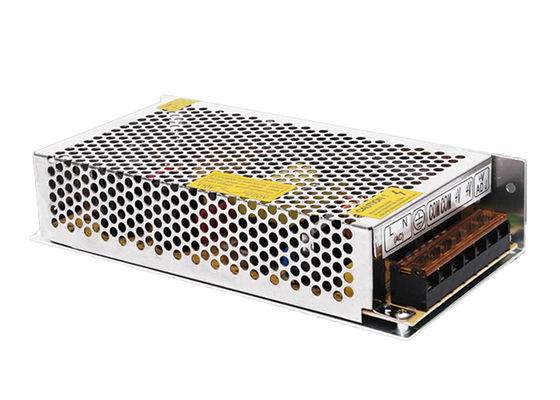

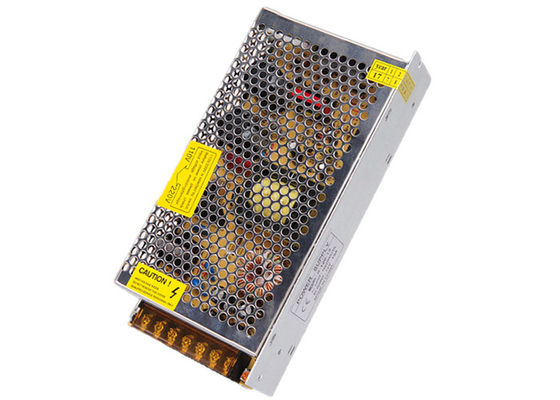

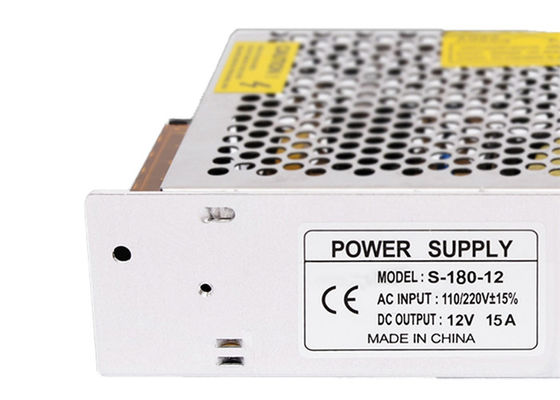

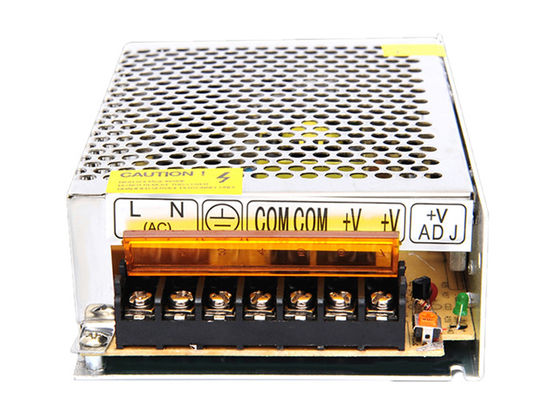

Advance Lighting Top Sell Quality 180W 24V 12V Adjustable Ac To Dc Cctv Power Supply Box For Led Signage Module
Product Description
--------------------------------------------------------------------------------------------------------------------------
LED Switching Power Supply is very easy to install with the led flexible strip light or other led products, we have different kinds of power also we have different voltage for your choice. Our LED Switching Power Supply with qualified electrician is highly recommended.
Features:
· Input Voltage: 90~130V AC, 170~250V AC
· Output Voltage: 12V/24V DC
· Shell Material: Metal case / Aluminum base
· Protection: Shortage Protection, Overload Protection, Over Voltage Protection
· Widely used in Industrial automation, LED display, communications, etc.
· Working Temperature: 0~40 centigrade
· Storage Temperature: -20~60 centigrade
· Ambient Humidity: 0~95% Non-Condensation
· IN-DOOR USE ONLY!
· LED indicator for power on
· 100% full load burn-in test
· Little volume high efficiency long life and high reliability
Specification
| Model No. | ALL-DC12-180W | ALL-DC24-180W |
| output voltage | 12v | 24v |
| input voltage | 90~130V /170~250V | 90~130V /170~250V |
| output current | 15A | 7.5A |
| Dimensions | 200*100*50mm | 200*100*50mm |
| Weight | 0.42KG | 0.42KG |
| Operating humidity conditions | 20% ~ 90%RH | 20% ~ 90%RH |
| Overload protection | 105% ~ 150% fold back current limiting with auto-recovery | 105% ~ 150% fold back current limiting with auto-recovery |
| Efficiency | >85% | >85% |
| Certificate | CE,RoHS | CE,RoHS |
